User Interface (UI)

Requires the ui feature flag

Python includes this feature by default. However, in Rust, you need to enable the ui feature flag when adding Radiate as a dependency.

[dependencies]
radiate = { version = "x", features = ["ui"] }

Radiate includes a simple terminal command-line user interface (TUI) built with ratatui for monitoring and controlling evolutionary runs. It provides real-time feedback on the progress of the evolution, including a plethora of statistics and visualizations.

Statistics & Timings

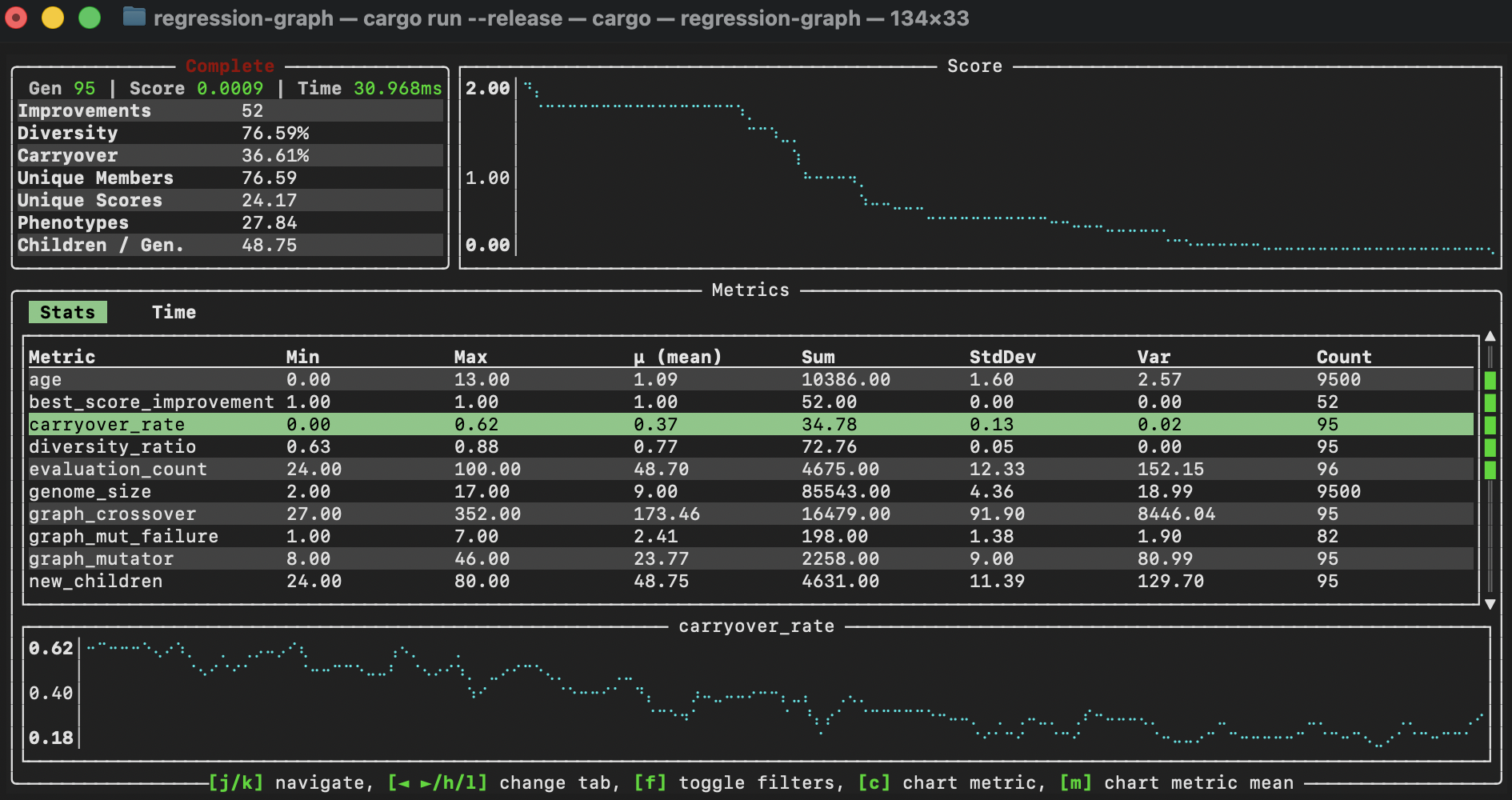

Below we can see the base TUI layout during an evolutionary run:

tui-stats

The TUI is composed of several sections:

  • Top Left: Displays base level information about the current engine, including the current generation, best fitness, and elapsed time followed by some useful statistics about the population.

  • Top Right: A line graph showing the best fitness over generations.

  • Bottom: Statistics collected throughout the engine's run. This will include information about the genetic operators used, such as selection, crossover, and mutation statistics. As you scroll the statistics panel, a line graph will appear on the bottom showing the history of the selected statistic.

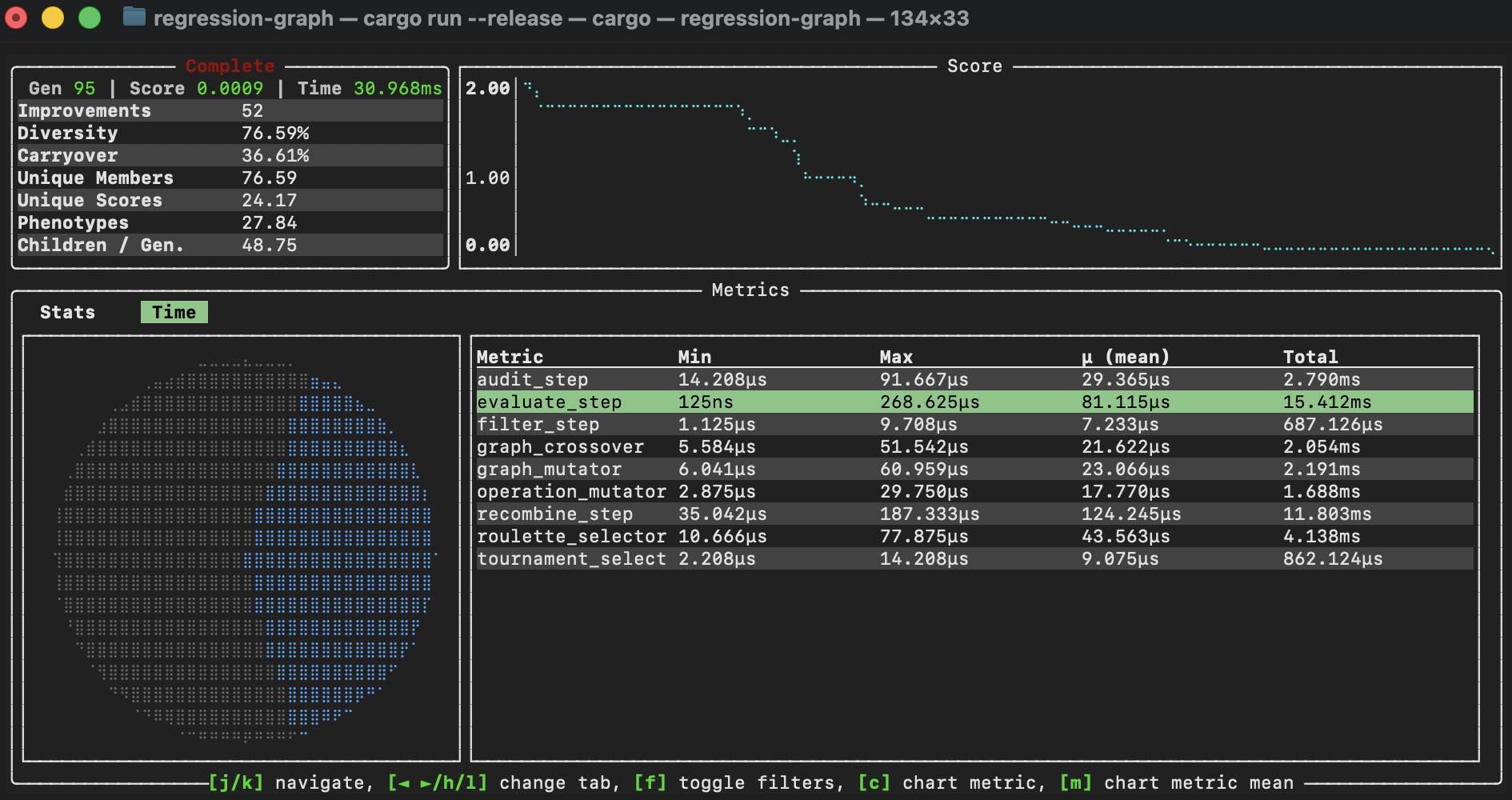

Its also possible to view the timings of various components of the genetic algorithm. This can be enabled by pressing the h/l (swap left/right between panels) key during an evolutionary run. Again, as you scroll through the timings panel, a pie chart will light up with the corresponding timing information.

tui-timings

Filtering

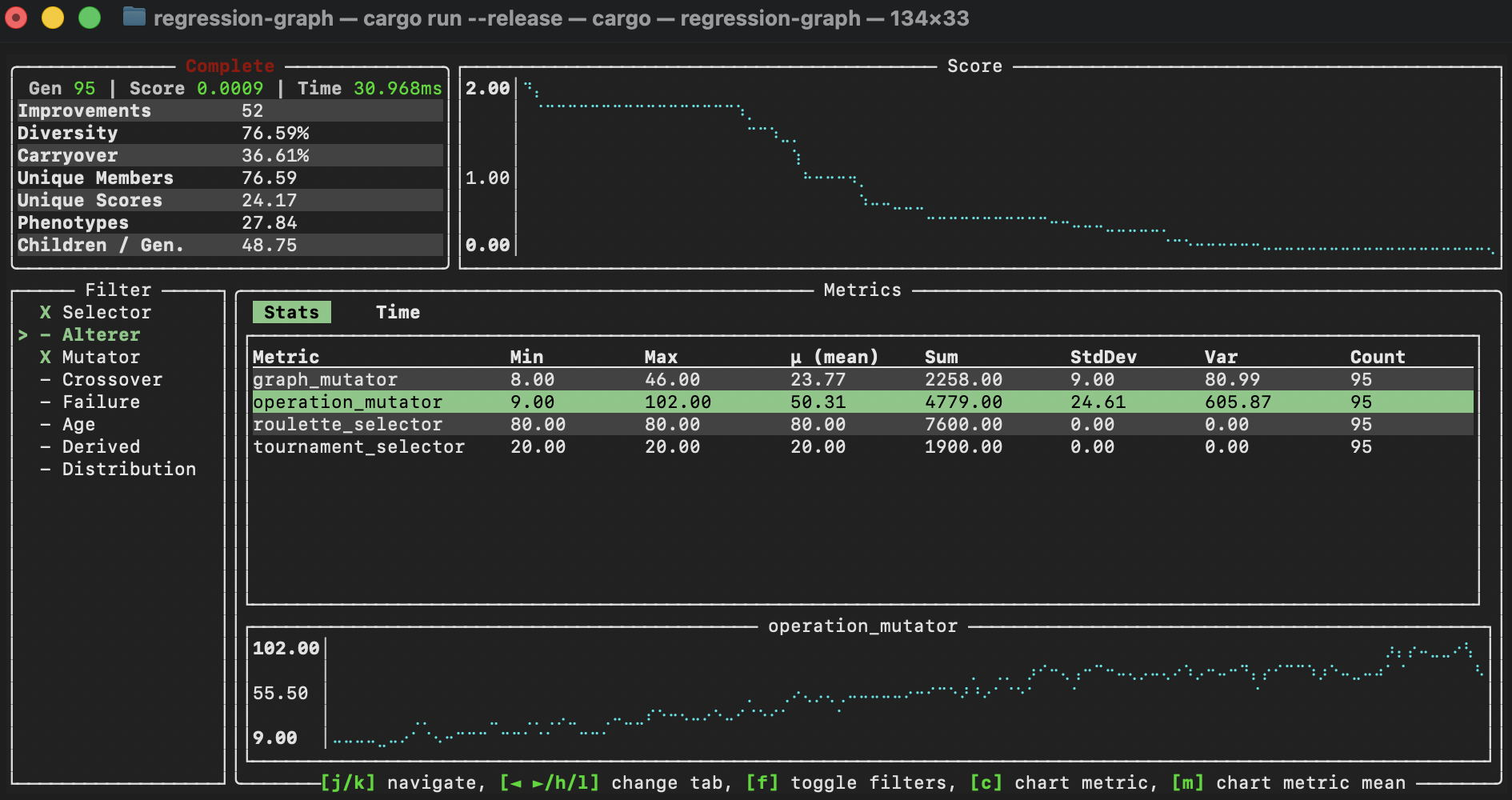

Because the engine collects so many statistics, its also possible to filter the statistics by their tags. You can do this by pressing the f key during an evolutionary run, which will bring up a prompt to enter a tag to filter by. For example, if I just want to see statistics related to mutations and selections, I can press f and enter and toggle the appropriate tags:

tui-timings

Multi-objective

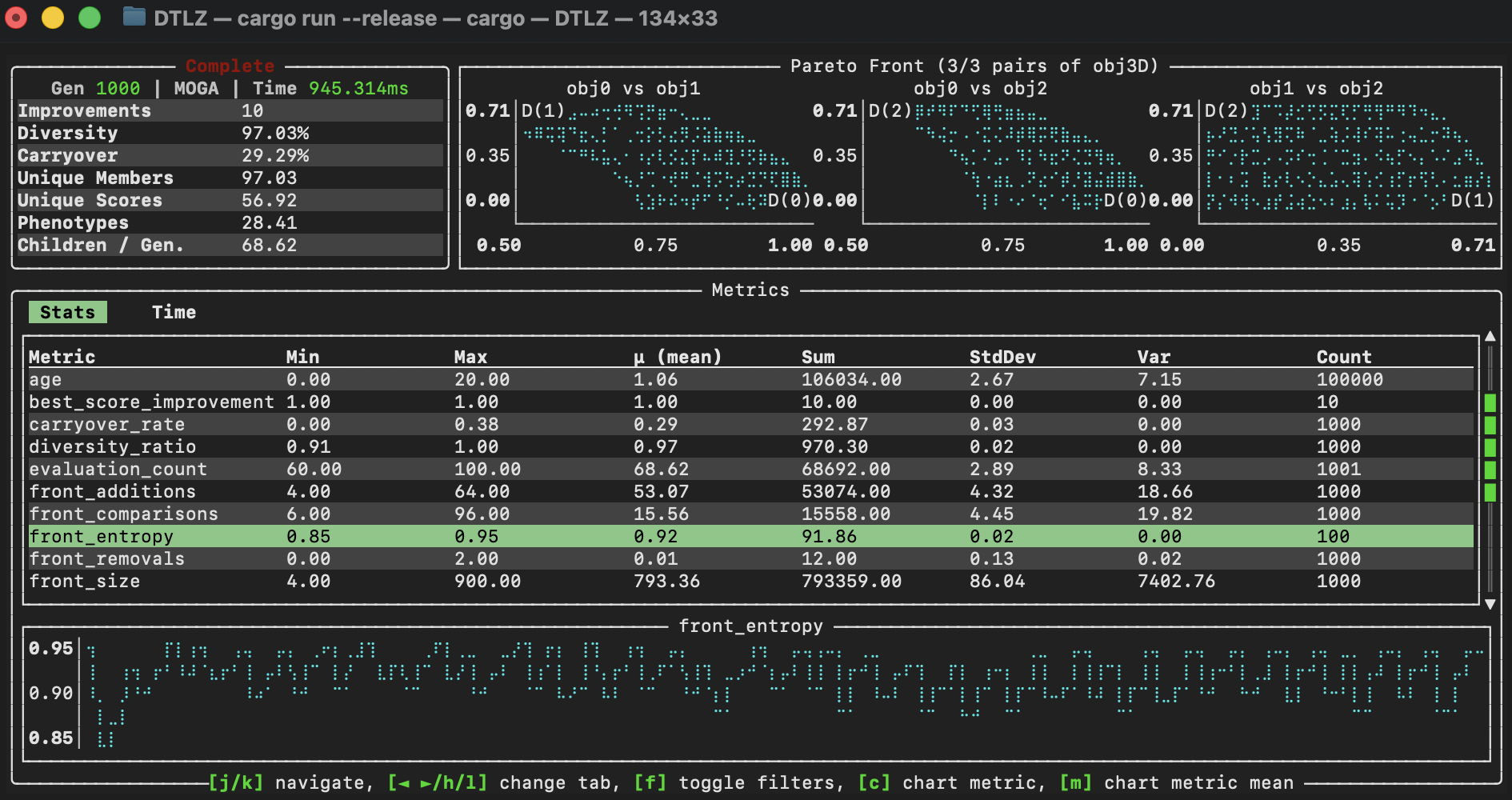

The TUI also supports multi-objective evolutionary runs. In this case, the top-right panel will show a scatter plot of the Pareto front, with each axis representing one of the objectives being optimized.

tui-timings

Using the TUI

The TUI is completely opt-in and can be configured as shown below

import radiate as rd

engine = rd.GeneticEngine(
    # ... configure your engine as normal ...
)

# Enable the UI by passing ui=True to run() Note that this will disable logging if log=True
result = engine.run(
    [rd.ScoreLimit(0.001), rd.GenerationsLimit(1000)],
    ui=True,
)
print(result)

use radiate::*;

const MIN_SCORE: i32 = 100;

let engine = GeneticEngine::builder()
    // ... configure your engine as normal ...
    .build();

// Wrap the engine with the UI
let final_generation = radiate::ui(engine)
    .iter()
    .until_score(MIN_SCORE)
    .last()
    .unwrap();

The TUI can be navigated using the following keybindings:

Key Action
q Quit the TUI and terminate the evolutionary run.
h / l Switch between the statistics panel and the timings panel.
j / k Scroll down/up through the selected panel.
f Filter statistics by tag.
c Toggle viewing/not viewing the statistics history panel (bottom).
m Toggle viewing/not viewing a line graph of the mean (bottom) - will merge with the statistics history panel.
