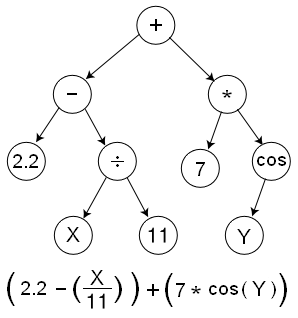

A tree represents a hierarchical structure where each node has exactly one parent (except the root) and zero or more children. When combined with the ops, it allows for the evolution of mathematical expressions, decision trees, and symbolic regression.

op-tree

Building a Tree

Trees in python aren't quite as expressive as in rust, but they can still be constructed and used in a similar way.

import radiate as rd

tree = rd.Tree(
    min_height=3,       # Default
    max_size=30,        # Default
    root=rd.Op.add(),   # The root operation - isn't necessary to specify
    vertex=[rd.Op.add(), rd.Op.sub(), rd.Op.mul(), rd.Op.div()],
    leaf=[rd.Op.var(0), rd.Op.var(1)],
)

result = tree.eval([1, 2])

use radiate::*;

// create a simple tree:
//              42
//           /  |   \
//          1   2    3
//             / \
//            3   4
let tree: Tree<i32> = Tree::new(TreeNode::new(42)
    .attach(TreeNode::new(1))
    .attach(TreeNode::new(2)
        .attach(TreeNode::new(3))
        .attach(TreeNode::new(4))
    .attach(TreeNode::new(3))));

// The tree can be evaluated with a function that takes a vector of inputs
// This creates a `Tree` that looks like:
//      +
//    /   \
//   *     +
//  / \   / \
// 2  3  2   x
//
// Where `x` is the first variable in the input.
// This can also be thought of (and is functionally equivalent) as:
//
// f(x) = (2 * 3) + (2 + x)
//
let root = TreeNode::new(Op::add())
    .attach(
        TreeNode::new(Op::mul())
            .attach(TreeNode::new(Op::constant(2.0)))
            .attach(TreeNode::new(Op::constant(3.0))),
    )
    .attach(
        TreeNode::new(Op::add())
            .attach(TreeNode::new(Op::constant(2.0)))
            .attach(TreeNode::new(Op::var(0))),
    );

// And the result of evaluating this tree with an input of `1` would be:
let result = root.eval(&vec![1_f32]);
assert_eq!(result, 9.0);

Key Properties:

  • Rooted: Always has a single root node
  • Acyclic: No node is its own ancestor
  • Hierarchical: Parent-child relationships

Node

Each node in a tree contains a value and optional children & arity. The TreeNode also implements the gene trait, making the node itself a gene and it's value the allele.

Node Types:

  • Root: Starting point of the tree (can have any number of children)
  • Vertex: Internal computation nodes (can have any number of children)
  • Leaf: Terminal nodes with no children (arity is Arity::Zero)

Codec

The TreeCodec is simply a codec that encodes a TreeChromosome and decodes it back into a Tree. The TreeCodec can be configured to create a single tree or a multi-root tree structure. Upon creation the codec will produce a 'perfect arity tree' of a specified min depth. This means that the initial tree will contain nodes each with children equal to their value's (op) arity. The max_size parameter can be used to limit the size of the tree, preventing it from growing too large (bloat) during evolution.

Radiate supports both single-rooted and multi-rooted tree structures to be evolved. The choice between these two structures essentially comes down to how many outputs you want to produce. For example, if you just want to evolve a single mathematical expression like such:

f(x) = (2 * 3) + (2 + x)

Then a single rooted tree would be sufficient. However, if you wanted to evolve a system of equations like such:

f(x) = (2 * 3) + (2 + x)
g(x) = (2 / 3) - (2 - x)

Then a multi-rooted tree would be necessary, with one root for f(x) and another for g(x).

Default Ops

Most of the params for the TreeCodec have sensible defaults in an attempt to make it as easy as possible to get started. So technically, you don't need to specify the ops, but in all likelihood you'll want to specify the ops to your specific use case. The defaults are as follows:

  • Root: Op.add() Op.sub(), Op.mul(), Op.div(), Op.sin(), Op.cos(), Op.tanh(), Op.relu(), Op.linear()
  • Vertex: Op.add(), Op.sub(), Op.mul(), Op.div(), Op.sin(), Op.cos(), Op.tanh(), Op.relu(), Op.linear()
  • Leaf: Op.var(0) - (first variable)
import radiate as rd

# Create a tree codec with a starting (minimum) depth of 3
codec = rd.TreeCodec(
    # Shape is only necessary for multi-rooted trees,
    # it specifies the number of trees and the
    # number of inputs to each tree.
    # For single rooted trees this will be ignored.
    #
    # Default: shape=(1, 1) - single rooted tree with 1 input variable
    shape=(2, 1),
    # The minimum depth of the tree. This is the depth
    # of the initial tree that will be produced by
    # the codec - evolution will be able
    # to increase the total size of the tree (without regards to depth) up to max_size.
    #
    # Default: min_depth=3
    min_depth=3,
    # The maximum size of the tree. This is the maximum number of nodes that the tree can have.
    max_size=30,
    # The options for the root node of the tree. The root is the last node in the tree
    # to be evaluated and is the node that produces the final output of the tree.
    # This is optional and defaults to a single add operator.
    root=rd.Op.add(),
    vertex=[rd.Op.add(), rd.Op.sub(), rd.Op.mul()],
    leaf=[rd.Op.var(0), rd.Op.var(1)],
)

genotype = codec.encode()
tree = codec.decode(genotype)

use radiate::*;

let store = vec![
    (NodeType::Root, vec![Op::add(), Op::sub()]),
    (NodeType::Vertex, vec![Op::add(), Op::sub(), Op::mul()]),
    (NodeType::Leaf, vec![Op::constant(1.0), Op::constant(2.0)]),
];

// Create a single rooted tree codec with a starting (minimum) depth of 3
let codec = TreeCodec::single(3, store);
let genotype: Genotype<TreeChromosome<Op<f32>>> = single_root_codec.encode();
let tree: Tree<Op<f32>> = codec.decode(&genotype);

// Create a multi-rooted tree codec with a starting (minimum) depth of 3 and 2 trees
let codec = TreeCodec::multi_root(3, 2, store);
let genotype: Genotype<TreeChromosome<Op<f32>>> = codec.encode();
// multi-rooted codec decodes to a Vec of Trees
// one for each root in the genotype
let trees: Vec<Tree<Op<f32>>> = codec.decode(&genotype);

Alters

HoistMutator

Inputs

  • rate: f32 - Mutation rate (0.0 to 1.0)
  • Purpose: Randomly hoists subtrees from one part of the tree to another.

The HoistMutator is a mutation operator that randomly selects a subtree from the tree and moves it to a different location in the tree. This can create new structures and relationships between nodes, allowing for more complex solutions to emerge.

import radiate as rd

mutator = rd.HoistMutator(rate=0.1)
mutator = rd.Mutate.hoist(0.1) # Using the dsl syntax for mutators

use radiate::*;

let mutator = HoistMutator::new(0.1);

TreeCrossover

Inputs

  • rate: f32 - Mutation rate (0.0 to 1.0)
  • Purpose: Swaps two subtrees between two trees.

The TreeCrossover is a crossover operator that randomly selects a subtree from one parent tree and swaps it with a subtree from another parent tree.

import radiate as rd

crossover = rd.TreeCrossover(rate=0.1)
crossover = rd.Cross.tree(0.1) # Using the dsl syntax for crossover operators

use radiate::*;

let mutator = TreeCrossover::new(0.1);
