Graphs

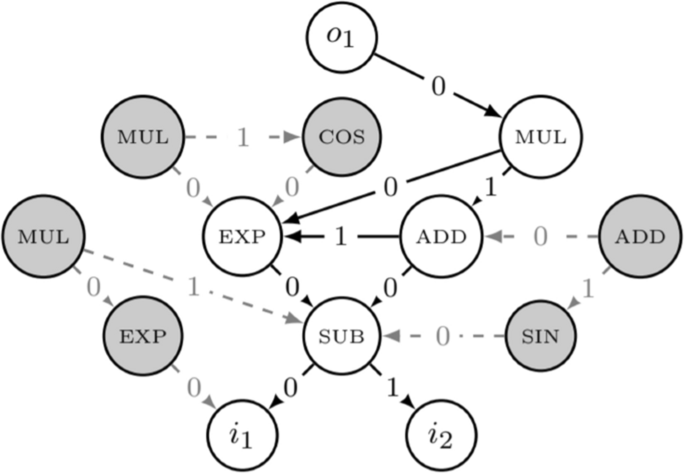

Graphs are a powerful way to represent problems. They are used in many fields, such as Neural Networks, and can be used to solve complex problems. Radiate thinks of graphs in a more general way than most implementations. Instead of being a collection of inputs, nodes, edges, and outputs, radiate thinks of a graph as simply a bag of nodes that can be connected in any way. Why? Well, because it allows for more flexibility within the graph and it lends itself well to the evolutionary nature of genetic programming. However, this representation is not without it's drawbacks. It can be difficult to reason about the graph and it can be difficult to ensure that the graph is valid. Radiate tries to mitigate these issues by sticking to a few simple rules that govern the graph.

1. Each input node must have 0 incoming connections and at least 1 outgoing connection.
2. Each output node must have at least 1 incoming connection and 0 outgoing connections.
3. Each edge node must have exactly 1 incoming connection and 1 outgoing connection.
4. Each vertex node must have at least 1 incoming connection and at least 1 outgoing connection.

With these rules in mind, we can begin to build and evolve graphs. The graph typically relies on an underlying GraphArchitect to construct a valid graph. This architect is a builder pattern that keeps an aggregate of nodes added and their relationships to other nodes. Because of the architect's decoupled nature, we can easily create complex graphs. When combined with the op functionality, the graph module allows for the creation of complex computational graphs that can be evolved to solve or eval regression problems.

Radiate provides a few basic graph architectures, but it is also possible to construct your own graph through either the built in graph functions or by using the architect. In most cases building a graph requires a vec of tuples (or a NodeStore) where the first element is the NodeType and the second element is a vec of values that the GraphNode can take. The NodeType is either Input, Output, Vertex, or Edge. The value of the GraphNode is picked at random from the vec of it's NodeType.

Key Properties:

• Flexible Connections: Nodes can have multiple inputs/outputs
• Indexed Access: Each node has a unique index in the vector
• Connection Sets: Each node maintains incoming/outgoing connections
• Direction Support: Can be directed acyclic (DAG) or cyclic

---

Building a Graph

Python Rust

Creating a graph in python doesn't offer as much flexibility as in rust at the current time, but it can still be done through the codec.

import radiate as rd

codec = rd.GraphCodec.directed(
    shape=(2, 1),
    vertex=[rd.Op.add(), rd.Op.sub(), rd.Op.mul(), rd.Op.div()],
    edge=rd.Op.weight(), # or [rd.Op.weight(), ...]
    output=rd.Op.linear(), # or [rd.Op.linear(), ...]
)

graph = codec.decode(codec.encode())

inputs = [[1.0, 2.0]]
outputs = graph.eval(inputs)

use radiate::*;

// create a simple graph:
// 0 -> 1 -> 2
let mut graph = Graph::<i32>::default();

let idx_one = graph.insert(NodeType::Input, 0);
let idx_two = graph.insert(NodeType::Vertex, 1);
let idx_three = graph.insert(NodeType::Output, 2);

graph.attach(idx_one, idx_two).attach(idx_two, idx_three);

// Set cycles in a cyclic graph:
let mut graph = Graph::<i32>::default();

let idx_one = graph.insert(NodeType::Input, 0);
let idx_two = graph.insert(NodeType::Vertex, 1);
let idx_three = graph.insert(NodeType::Vertex, 2);
let idx_four = graph.insert(NodeType::Output, 3);

graph
    .attach(idx_one, idx_two)
    .attach(idx_two, idx_three)
    .attach(idx_three, idx_two)
    .attach(idx_three, idx_four)
    .attach(idx_four, idx_two);

graph.set_cycles(vec![]);

Now, the above works just fine, but can become cumbersome quickly. To ease the process of creating a graph, we can use the default graph types to create graphs in a better way. All we need to do is define a NodeStore that contains the possible values for each node given a NodeType.

Python Rust

There isn't a direct way to create a Graph in python, instead we can use the codec to create on directly if needed.

import radiate as rd

codec = rd.GraphCodec.directed(
    shape=(2, 1),
    vertex=[rd.Op.add(), rd.Op.sub(), rd.Op.mul(), rd.Op.div()],
    edge=[rd.Op.weight()],
    output=[rd.Op.linear()],
)

# or recurrent graph
codec = rd.GraphCodec.recurrent(
    # ... same as above
)

# or weighted directed graph
codec = rd.GraphCodec.weighted_directed(
    # ... same as above
)

# or weighted recurrent graph
codec = rd.GraphCodec.weighted_recurrent(
    # ... same as above
)

# or lstm graph
codec = rd.GraphCodec.lstm(
    # ... same as above
)

# or gru graph
codec = rd.GraphCodec.gru(
    # ... same as above
)

graph = codec.decode(codec.encode())

inputs = [[1.0, 2.0]]
outputs = graph.eval(inputs)

use radiate::*;

// Input nodes are picked in order while the rest of the node's values
// are picked at random.

// Take note that the NodeType::Input has two variables, [0, 1]
// and we create a graph with two input nodes.
let values = vec![
    (NodeType::Input, vec![Op::var(0), Op::var(1)]),
    (NodeType::Edge, vec![Op::weight()]),
    (NodeType::Vertex, vec![Op::sub(), Op::mul(), Op::linear()]),
    (NodeType::Output, vec![Op::linear()]),
];

// create a directed graph with 2 input nodes and 2 output nodes
let graph: Graph<Op<f32>> = Graph::directed(2, 2, values);

// create a recurrent graph with 2 input nodes and 2 output nodes
let graph: Graph<Op<f32>> = Graph::recurrent(2, 2, values);

// create a weighted directed graph with 2 input nodes and 2 output nodes
let graph: Graph<Op<f32>> = Graph::weighted_directed(2, 2, values);

// create a weighted recurrent graph with 2 input nodes and 2 output nodes
let graph: Graph<Op<f32>> = Graph::weighted_recurrent(2, 2, values);

// create an LSTM graph with 2 input nodes and 2 output nodes
let graph: Graph<Op<f32>> = Graph::lstm(2, 2, values);

// create a GRU graph with 2 input nodes and 2 output nodes
let graph: Graph<Op<f32>> = Graph::gru(2, 2, values);

// Op graphs can be evaluated much like trees, but with the added complexity of connections.
let inputs = vec![vec![1.0, 2.0]];
let outputs = graph.eval(&inputs);

The Graph can be visualized using the dot format, which can be rendered using tools like Graphviz. This is especially useful for understanding the structure of complex graphs. Calling .to_dot() on a graph will generate the dot representation. The dot format for graphs can be intpreted as follows:

• Blue squares represent input nodes
• Yellow circles represent vertex nodes
• Green squares represent output nodes.
• Grey diamonds represent edge nodes.
• Solid lines represent directed connections
• Dashed lines represent recurrent connections or connections that come from cycles.

Directed

A directed graph is a graph in which the edges have a direction. This means that the connections between nodes are one-way, and data can only flow in the direction of the edges. Here we can see a simple directed graph with 2 input nodes and 1 output node.

Recurrent

A recurrent graph is a graph in which the edges can form cycles. This means that data can flow in loops, allowing for more complex behaviors. Here we can see a simple recurrent graph with 2 input nodes, two recurrent vertex nodes, and 1 output node.

Weighted Directed

A weighted directed graph is a directed graph in which the edges have weights. These weights can represent the strength or importance of the connection between nodes. Here we can see a simple weighted directed graph with 2 input nodes, 2 weighted edge nodes, and 1 output node.

Weighted Recurrent

A weighted recurrent graph is a recurrent graph in which the edges have weights. These weights can represent the strength or importance of the connection between nodes. Here we can see a simple weighted recurrent graph with 2 input nodes, 2 recurrent vertex nodes, 2 weighted edge nodes, and 1 output node.

Lstm

A Long Short-Term Memory (LSTM) network is a type of recurrent neural network that is designed to handle sequential data. It is capable of learning long-term dependencies and is often used in tasks such as language modeling and time series prediction. Here we can see a simple LSTM with 2 input node and 2 output node. The internal nodes are generated randomly from the provided store. This is an intentionally simplified LSTM structure with the intent of the rest of the nodes being evolved.

Gru

A Gated Recurrent Unit (GRU) is a type of recurrent neural network that is designed to handle sequential data. It is similar to a Long Short-Term Memory (LSTM) network, but it has a simpler architecture and is easier to train. Here we can see a simple GRU with 1 input node and 1 output node. The internal nodes are generated randomly from the provided store. This is an intentionally simplified GRU structure with the intent of the rest of the nodes being evolved.

---

Node

The GraphNode struct is a fundamental building block for graph-based genetic programming in Radiate. It represents a node in a directed graph that can have both incoming and outgoing connections to other nodes. Each node has a unique identifier, an index in the graph, a value of type T, and maintains sets of incoming and outgoing connections. The GraphNode can be of different types, such as Input, Output, Vertex, or Edge, each serving a specific role in the graph structure. To ensure the integrity of the graph, the GraphNode enforces rules based on its type, such as the number of incoming and outgoing connections it can have. In order to facilitate genetic programming, the GraphNode implements the Gene trait, where it's allele is the value of the node, and its gene is the node itself.

Node Types:

• Input: Entry points (no incoming, one or more outgoing)
• Output: Exit points (one or more incoming, no outgoing)
• Vertex: Internal computation (both incoming and outgoing)
• Edge: Connection nodes (exactly one incoming and one outgoing)

Python Rust

There is no GraphNode in python. It isn't necessary for the api.

use radiate::*;

// Create a new input node with value 42
let node = GraphNode::new(0, NodeType::Input, 42);

// Create a node with specific arity
// This node will be invalid if it has a number of incoming connections other than 2
let node_with_arity = GraphNode::with_arity(1, NodeType::Vertex, 42, Arity::Exact(2));

Codec

The GraphCodec is a codec that encodes a GraphChromosome and decodes it back into a Graph. The GraphCodec can be configured to create directed or recurrent graphs.

Python Rust

import radiate as rd

# Create a directed graph codec
codec = rd.GraphCodec.directed(
    shape=(2, 1),
    vertex=[rd.Op.add(), rd.Op.mul()],
    edge=rd.Op.weight(),
    output=rd.Op.linear()
)

genotype = codec.encode()
graph = codec.decode(genotype)

# Create a recurrent graph codec
codec = rd.GraphCodec.recurrent(
    shape=(2, 1),
    vertex=[rd.Op.add(), rd.Op.mul()],
    edge=rd.Op.weight(),
    output=rd.Op.linear()
)

genotype = codec.encode()
recurrent_graph = codec.decode(genotype)

use radiate::*;

// Create a store for graph operations
let store = vec![
    (NodeType::Input, vec![Op::var(0), Op::var(1)]),
    (NodeType::Edge, vec![Op::add(), Op::mul()]),
    (NodeType::Vertex, vec![Op::sub(), Op::div()]),
    (NodeType::Output, vec![Op::sigmoid(), Op::tanh()]),
];

// Create a directed graph codec with 2 input nodes and 2 output nodes
let codec = GraphCodec::directed(2, 2, store);
let genotype: Genotype<GraphChromosome<Op<f32>>> = codec.encode();
let graph: Graph<Op<f32>> = codec.decode(&genotype);

// Create a recurrent graph codec with 2 input nodes and 2 output nodes
let recurrent_codec = GraphCodec::recurrent(2, 2, store);
let recurrent_genotype: Genotype<GraphChromosome<Op<f32>>> = recurrent_codec.encode();
let recurrent_graph: Graph<Op<f32>> = recurrent_codec.decode(&recurrent_genotype);

---

Alters

GraphMutator

Inputs

• vertex_rate: f32 - Probabilty of adding a vertex to the graph (0.0 to 1.0)
• edge_rate: f32 - Probabilty of adding an edge to the graph (0.0 to 1.0)
• allow_recurrent: bool - Whether to allow recurrent connections in the graph. The default is true, meaning the graph can have cycles.

• Purpose: Randomly adds vertices and edges to the graph.

This mutator is used to add new nodes and connections to the graph. It can be used to evolve the graph structure over time, allowing for more complex solutions to emerge.

Python Rust

import radiate as rd

# Create a mutator that adds vertices and edges with a 10% chance for either
mutator = rd.GraphMutator(vertex_rate=0.1, edge_rate=0.1, allow_recurrent=False)

use radiate::*;

// Create a mutator that adds vertices and edges with a 10% chance for either
let mutator = GraphMutator::new(0.1, 0.1);

let mutator = GraphMutator::new(0.1, 0.1).allow_recurrent(false); // Disallow recurrent connections

GraphCrossover

Inputs

• rate: f32 - Crossover rate (0.0 to 1.0)
• cross_parent_node_rate: f32 - Probability of the less fit parent taking a node from the more fit parent (0.0 to 1.0)

• Purpose: Swaps node value's (alleles) between two graphs.

This crossover operator is used to combine two parent graphs by swapping the values of their nodes. It can be used to create new graphs that inherit the structure and values of their parents. Given that a more fit parent's node's arity matches the less fit parent's node's arity, the less fit parent will take (inherit) the more fit parent's node's value. This means the child is guaranteed to have the same structure as the less fit parent, but with some of the more fit parent's values (alleles). This process is extremely similar to how the NEAT algorithm works.

Python Rust

import radiate as rd

crossover = rd.GraphCrossover(0.1, 0.5)

use radiate::*;

// Create a mutator that adds vertices and edges with a 10% chance for either
let crossover = GraphCrossover::new(0.1, 0.5);
