Examples

Check the git repo examples for a more comprehensive list of examples.

---

MinSum

Find a set of numbers that sum to the minimum value (0). The solution is represented as a vector of integers, and the fitness function calculates the sum of the integers. The goal is to minimize this sum to 0.

For example, a solution could be:

[0, 0, 0, 0, 0, 0, 0, 0, 0, 0]

Python Rust

import radiate as rd

engine = rd.GeneticEngine(
    codec=rd.IntCodec.vector(10, (0, 100)),
    fitness_func=lambda x: sum(x),
    offspring_selector=rd.EliteSelector(),
    objectives="min",
    alters=[
        rd.SwapMutator(0.05),
        rd.UniformCrossover(0.5),
    ],
)

result = engine.run(rd.ScoreLimit(0))

print(result)

use radiate::*;

const MIN_SCORE: i32 = 0;

let mut engine = GeneticEngine::builder()
    .codec(IntCodec::vector(10, 0..100))
    .minimizing()
    .offspring_selector(EliteSelector::new())
    .mutator(SwapMutator::new(0.05))
    .crossover(UniformCrossover::new(0.5))
    .fitness_fn(|geno: Vec<i32>| geno.iter().sum::<i32>())
    .build();

let result = engine.run(|epoch| {
    println!("[ {:?} ]: {:?}", epoch.index(), epoch.value());
    epoch.score().as_i32() == MIN_SCORE
});

println!("{:?}", result);

---

NQueens

Solve the classic N-Queens problem, where the goal is to place n queens on an n x n board such that no two queens threaten each other. By threatening each other, we mean that they are in the same row, column, or diagonal. The solution is represented as a single chromosome with n genes, where each gene represents the row position of a queen in its respective column. The fitness function calculates the number of pairs of queens that threaten each other, and the goal is to minimize this value to zero.

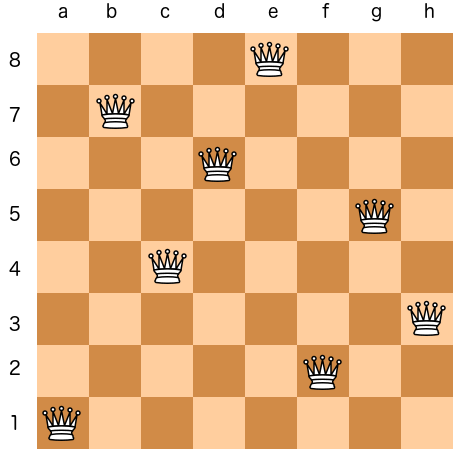

For example, a solution for n=8 would be:

Python Rust

import radiate as rd

N_QUEENS = 32

def fitness_fn(queens):
    i_indices, j_indices = np.triu_indices(N_QUEENS, k=1)
    same_row = queens[i_indices] == queens[j_indices]
    same_diagonal = np.abs(i_indices - j_indices) == np.abs(queens[i_indices] - queens[j_indices])

    return np.sum(same_row) + np.sum(same_diagonal)

engine = rd.GeneticEngine(
    codec=rd.IntCodec.vector(N_QUEENS, (0, N_QUEENS), use_numpy=True),
    fitness_func=fitness_fn,
    objectives="min",
    offspring_selector=rd.BoltzmannSelector(4.0),
    alters=[
        rd.MultiPointCrossover(0.75, 2),
        rd.UniformMutator(0.05)
    ]
)

result = engine.run(rd.ScoreLimit(0), log=False)
print(result)

board = result.value()
for i in range(N_QUEENS):
    for j in range(N_QUEENS):
        if board[j] == i:
            print("Q ", end="")
        else:
            print(". ", end="")
    print()

use radiate::*;

const N_QUEENS: usize = 32;

fn main() {
    random_provider::set_seed(500);

    let codec = IntCodec::vector(N_QUEENS, 0..N_QUEENS as i8);

    let engine = GeneticEngine::builder()
        .codec(codec)
        .minimizing()
        .offspring_selector(BoltzmannSelector::new(4.0))
        .crossover(MultiPointCrossover::new(0.75, 2))
        .mutator(UniformMutator::new(0.05))
        .fitness_fn(|queens: Vec<i8>| {
            let mut score = 0;

            for i in 0..N_QUEENS {
                for j in (i + 1)..N_QUEENS {
                    if queens[i] == queens[j] {
                        score += 1;
                    }
                    if (i as i8 - j as i8).abs() == (queens[i] - queens[j]).abs() {
                        score += 1;
                    }
                }
            }

            score
        })
        .build();

    let result = engine
        .iter()
        .inspect(|ctx| {
            println!("[ {:?} ]: {:?}", ctx.index(), ctx.score().as_usize());
        })
        .until_score_equal(0)
        .unwrap();

    println!("Result: {:?}", result);
    println!("\nResult Queens Board ({:.3?}):", result.time());

    let board = &result.value();
    for i in 0..N_QUEENS {
        for j in 0..N_QUEENS {
            if board[j] == i as i8 {
                print!("Q ");
            } else {
                print!(". ");
            }
        }
        println!();
    }
}

---

Rastrigin

The Rastrigin function is a non-convex function used as a benchmark test problem for optimization algorithms. The function is highly multimodal, with many local minima, making it challenging for optimization algorithms to find the global minimum. It is defined as: $$ f(x) = A \cdot n + \sum_{i=1}^{n} \left[ x_i^2 - A \cdot \cos(2 \pi x_i) \right] $$ where:

• \( A \) is a constant (typically set to 10)
• \( n \) is the number of dimensions (in this case 2)
• \( x_i \) are the input variables.
• The global minimum occurs at \( x = 0 \) for all dimensions, where the function value is \( 0 \).

Python Rust

import math
import radiate as rd

A = 10.0
RANGE = 5.12
N_GENES = 2

def fitness_fn(x):
    value = A * N_GENES
    for i in range(N_GENES):
        value += x[i]**2 - A * math.cos((2.0 * 3.141592653589793 * x[i]))
    return value

codec = rd.FloatCodec.vector(2, (-5.12, 5.12))
engine = rd.GeneticEngine(codec, fitness_fn)

engine.minimizing()
engine.alters([
    rd.UniformCrossover(0.5),
    rd.ArithmeticMutator(0.01)
])

print(engine.run(rd.ScoreLimit(0.0001)))

use radiate::*;

const MIN_SCORE: f32 = 0.00;
const MAX_SECONDS: f64 = 1.0;
const A: f32 = 10.0;
const RANGE: f32 = 5.12;
const N_GENES: usize = 2;

let mut engine = GeneticEngine::builder()
    .codec(FloatCodec::vector(N_GENES, -RANGE..RANGE))
    .minimizing()
    .population_size(500)
    .alter(alters!(
        UniformCrossover::new(0.5),
        ArithmeticMutator::new(0.01)
    ))
    .fitness_fn(move |genotype: Vec<f32>| {
        let mut value = A * N_GENES as f32;
        for i in 0..N_GENES {
            value += genotype[i].powi(2) - A * (2.0 * std::f32::consts::PI * genotype[i]).cos();
        }

        value
    })
    .build();

let result = engine.run(|ctx| {
    println!("[ {:?} ]: {:?}", ctx.index, ctx.score().as_f32());
    ctx.score().as_f32() <= MIN_SCORE || ctx.seconds() > MAX_SECONDS
});

println!("{:?}", result);

---

DTLZ1

The DTLZ1 problem is a well-known multiobjective optimization problem that is used to test the performance of multiobjective optimization algorithms. It is a 3-objective problem with 4 variables and is defined as:

\[ \begin{align*} \text{minimize} \quad & f_1(x) = (1 + g) \cdot x_1 \cdot x_2 \\ \text{minimize} \quad & f_2(x) = (1 + g) \cdot x_1 \cdot (1 - x_2) \\ \text{minimize} \quad & f_3(x) = (1 + g) \cdot (1 - x_1) \\ \text{subject to} \quad & 0 \leq x_i \leq 1 \quad \text{for} \quad i = 1, 2, 3, 4 \\ \text{where} \quad & g = \sum_{i=3}^{4} (x_i - 0.5)^2 \end{align*} \]

Python Rust

import radiate as rd

variables = 4
objectives = 3
k = variables - objectives + 1

def dtlz_1(val):
    g = 0.0
    for i in range(variables - k, variables):
        g += (val[i] - 0.5) ** 2 - math.cos(20.0 * math.pi * (val[i] - 0.5))
    g = 100.0 * (k + g)
    f = [0.0] * objectives
    for i in range(objectives):
        f[i] = 0.5 * (1.0 + g)
        for j in range(objectives - 1 - i):
            f[i] *= val[j]
        if i != 0:
            f[i] *= 1.0 - val[objectives - 1 - i]
    return f


engine = rd.GeneticEngine(
    codec=rd.FloatCodec.vector(variables, (0.0, 1.0), (-100.0, 100.0)),
    fitness_func=dtlz_1,
    offspring_selector=rd.TournamentSelector(k=5),
    survivor_selector=rd.NSGA2Selector(),
    objectives=["min" for _ in range(objectives)],
    alters=[
        rd.SimulatedBinaryCrossover(1.0, 1.0),
        rd.UniformMutator(0.1)
    ],
)

result = engine.run(rd.GenerationsLimit(1000))

# When running an MO problem, we can get the resulting pareto from from the
# engine's epoch result. This is stored in the 'value()' field of the result here:
front = result.value()

# The front is a list of individuals, each with a 'fitness' attribute
# which is a list of fitness values for each objective.
x = [member["fitness"][0] for member in front]
y = [member["fitness"][1] for member in front]
z = [member["fitness"][2] for member in front]

use radiate::*;

pub fn dtlz_1(values: &[f32]) -> Vec<f32> {
    let mut g = 0.0;
    for i in VARIABLES - K..VARIABLES {
        g += (values[i] - 0.5).powi(2) - (20.0 * std::f32::consts::PI * (values[i] - 0.5)).cos();
    }

    g = 100.0 * (K as f32 + g);

    let mut f = vec![0.0; OBJECTIVES];
    for i in 0..OBJECTIVES {
        f[i] = 0.5 * (1.0 + g);
        for j in 0..OBJECTIVES - 1 - i {
            f[i] *= values[j];
        }

        if i != 0 {
            f[i] *= 1.0 - values[OBJECTIVES - 1 - i];
        }
    }

    f
}

const VARIABLES: usize = 4;
const OBJECTIVES: usize = 3;
const K: usize = VARIABLES - OBJECTIVES + 1;

let codec = FloatCodec::vector(VARIABLES, 0_f32..1_f32).with_bounds(-100.0, 100.0);

let mut engine = GeneticEngine::builder()
    .codec(codec)
    .multi_objective(vec![Optimize::Minimize; OBJECTIVES])
    .offspring_selector(TournamentSelector::new(5))
    .survivor_selector(NSGA2Selector::new())
    .alter(alters!(
        SimulatedBinaryCrossover::new(1_f32, 1.0),
        UniformMutator::new(0.1),
    ))
    .fitness_fn(|geno: Vec<f32>| dtlz_1(&geno))
    .build();

let result = engine.run(|ctx| {
    println!("[ {:?} ]", ctx.index);
    ctx.index > 1000
});

// When running an MO problem, we can get the resulting pareto from from the
// engine's epoch result. This is stored in the 'value()' field of the result here:
let front = result.front();

The resulting Pareto front can be visualized using Plotly or matplotlib, as shown below:

---

Graph - XOR Problem

Evolve a Graph<Op<f32>> to solve the XOR problem (NeuroEvolution).

Python Rust

import radiate as rd

inputs = [[0.0, 0.0], [1.0, 1.0], [1.0, 0.0], [0.0, 1.0]]
answers = [[0.0], [0.0], [1.0], [1.0]]

codec = rd.GraphCodec.directed(
    shape=(2, 1),
    vertex=[rd.Op.add(), rd.Op.mul(), rd.Op.linear()],
    edge=rd.Op.weight(),
    output=rd.Op.linear(),
)

engine = rd.GeneticEngine(
    codec=codec,
    fitness_fn=rd.Regression(inputs, answers, loss='mse'),
    objectives="min",
    alters=[
        rd.GraphCrossover(0.5, 0.5),
        rd.OperationMutator(0.07, 0.05),
        rd.GraphMutator(0.1, 0.1),
    ],
)

result = engine.run([rd.ScoreLimit(0.001), rd.GenerationsLimit(1000)], log=True)

for input, target in zip(inputs, answers):
    print(f"Input: {input}, Target: {target}, Output: {result.value().eval([input])}")

Requires gp feature flag

use radiate::*;

const MAX_INDEX: i32 = 500;
const MIN_SCORE: f32 = 0.01;

fn main() {
    random_provider::set_seed(501);

    let values = vec![
        (NodeType::Input, vec![Op::var(0), Op::var(1)]),
        (NodeType::Edge, vec![Op::weight(), Op::identity()]),
        (NodeType::Vertex, ops::all_ops()),
        (NodeType::Output, vec![Op::sigmoid()]),
    ];

    let graph_codec = GraphCodec::directed(2, 1, values);
    let regression = Regression::new(get_dataset(), Loss::MSE);

    let mut engine = GeneticEngine::builder()
        .codec(graph_codec)
        .fitness_fn(regression)
        .minimizing()
        .alter(alters!(
            GraphCrossover::new(0.5, 0.5),
            OperationMutator::new(0.05, 0.05),
            GraphMutator::new(0.06, 0.01).allow_recurrent(false),
        ))
        .build();

    let result = engine.run(|ctx| {
        println!("[ {:?} ]: {:?}", ctx.index, ctx.score().as_f32(),);
        ctx.index == MAX_INDEX || ctx.score().as_f32() < MIN_SCORE
    });

    display(&result);
}

fn display(result: &EngineContext<GraphChromosome<Op<f32>>, Graph<Op<f32>>>) {
    let mut reducer = GraphEvaluator::new(&result.best);
    for sample in get_dataset().iter() {
        let output = &reducer.eval_mut(sample.input())[0];
        println!(
            "{:?} -> epected: {:?}, actual: {:.3?}",
            sample.input(),
            sample.output(),
            output
        );
    }

    println!("{:?}", result)
}

fn get_dataset() -> DataSet {
    let inputs = vec![
        vec![0.0, 0.0],
        vec![1.0, 1.0],
        vec![1.0, 0.0],
        vec![0.0, 1.0],
    ];

    let answers = vec![vec![0.0], vec![0.0], vec![1.0], vec![1.0]];

    DataSet::new(inputs, answers)
}

---

Tree - Regression

Evolve a Tree<Op<f32>> to solve the a regression problem (Genetic Programming).

Python Rust

import radiate as rd

inputs = [[0.0, 0.0], [1.0, 1.0], [1.0, 0.0], [0.0, 1.0]]
answers = [[0.0], [0.0], [1.0], [1.0]]

codec = rd.TreeCodec(
    shape=(2, 1),
    vertex=[rd.Op.sub(), rd.Op.mul(), rd.Op.add()],
    root=rd.Op.linear(),
)

engine = rd.GeneticEngine(
    codec=codec,
    fitness_func=rd.Regression(inputs, answers),
    objectives="min",
    alters=[
        rd.TreeCrossover(0.7),
        rd.HoistMutator(0.01),
    ],
)

result = engine.run([rd.ScoreLimit(0.01), rd.TimeLimit(1.0)], log=True)
print(result)

for input, target in zip(inputs, answers):
    print(f"Input: {input}, Target: {target}, Output: {result.value().eval([input])}")

Requires gp feature flag

use radiate::*;

const MIN_SCORE: f32 = 0.01;
const MAX_SECONDS: f64 = 1.0;

fn main() {
    random_provider::set_seed(518);

    let store = vec![
        (NodeType::Vertex, vec![Op::add(), Op::sub(), Op::mul()]),
        (NodeType::Leaf, vec![Op::var(0)]),
    ];

    let tree_codec = TreeCodec::single(3, store).constraint(|root| root.size() < 30);
    let regression = Regression::new(get_dataset(), Loss::MSE);

    let mut engine = GeneticEngine::builder()
        .codec(tree_codec)
        .fitness_fn(regression)
        .minimizing()
        .mutator(HoistMutator::new(0.01))
        .crossover(TreeCrossover::new(0.7))
        .build();

    let result = engine.run(|ctx| {
        println!("[ {:?} ]: {:?}", ctx.index, ctx.score().as_f32());
        ctx.score().as_f32() < MIN_SCORE || ctx.seconds() > MAX_SECONDS
    });

    display(&result);
}

fn display(result: &EngineContext<TreeChromosome<Op<f32>>, Tree<Op<f32>>>) {
    let data_set = get_dataset();
    let accuracy = Accuracy::new("reg", &data_set, Loss::MSE);
    let accuracy_result = accuracy.calc(|input| vec![result.best.eval(input)]);

    println!("{:?}", result);
    println!("Best Tree: {}", result.best.format());
    println!("{:?}", accuracy_result);
}

fn get_dataset() -> DataSet {
    let mut inputs = Vec::new();
    let mut answers = Vec::new();

    let mut input = -1.0;
    for _ in -10..10 {
        input += 0.1;
        inputs.push(vec![input]);
        answers.push(vec![compute(input)]);
    }

    DataSet::new(inputs, answers)
}

fn compute(x: f32) -> f32 {
    4.0 * x.powf(3.0) - 3.0 * x.powf(2.0) + x
}
